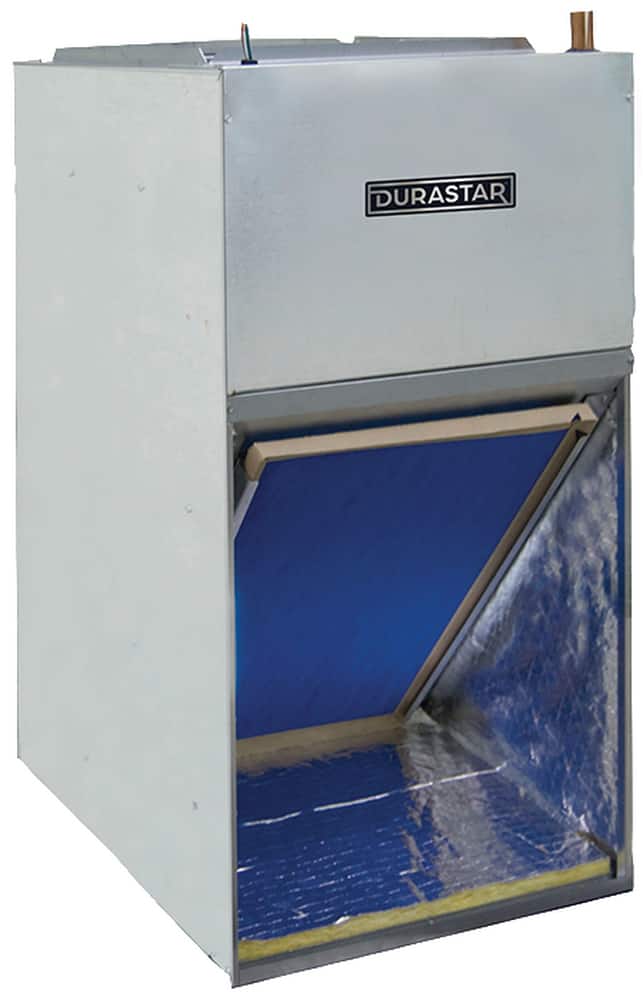

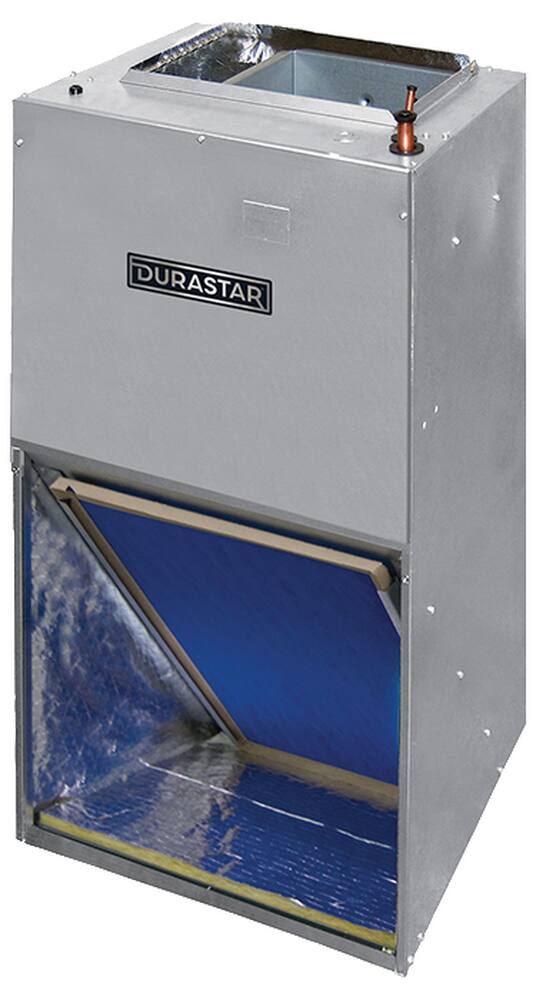

Front Return Air Handlers - Two-Stage

Space-specific designs that uphold superior efficiencies.

Not only do front return air handlers from Durastar provide efficiency with their two-stage ECM operation, but they also convert to bottom return units to better suit your requirements. Perfect for apartment or condo applications, these air handlers can easily be mounted to a closet wall and fit over your water heater to accommodate small utility spaces. As part of our Advanced Series of two-stage air handlers, our front return air handlers offer all aluminum coils and optional factory-installed features such as a heater kit or float switch. Rest assured that all Durastar products are tested to perform and built to last.

Models

DRF2TA2421ASTNJN0

Warranty


No one stands behind their brand like we do. Durastar offers durable airflow during even the harshest heating and cooling conditions. In addition, our warranty provides maximum coverage for total peace of mind.

Extended warranty options are available for both parts and labor. Talk to your contractor for more information.

Learn More
Explore tax credits and rebates

Front Return Air Handlers - Two-Stage Features


  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Not all Durastar products may be available in all areas currently. See your local Durastar distributor for details.
  • Front or Bottom Return with Aluminum Indoor Coil Design: Constructed of aluminum fins bonded to internally grooved aluminum tubing and are more corrosion resistant
  • Less than 2% Cabinet Air Leakage at 1-inch H2O: When tested in accordance with ASHRAE Standard 193
  • Can be field wired for single or two stage applications

DRF2TA2421ASTNJN0


  • BTU: 24000
  • BTU Cooling Rating: 24000 Btu/h
  • Blower Type: Multispeed
  • Coil Type: N
  • Communicating: Non-Communicating
  • Configuration: Front
  • Fan Speeds: 4
  • Height: 36 in
  • Max CFM: 900 cfm
  • MBH: 24
  • Phase: Single Phase
  • Power Source: Electric
  • Refrigerant: R-410A
  • Refrigerant Control: TXV
  • Specifications - UL Listed: Yes
  • Stages: Two
  • Style Name: DRF2TA
  • Tonnage: 2 Tons
  • Type: DRF2TA2421ASTNJN0
  • Volts: 208/230V
  • Weight: 95 lb
  • Width: 21-1/2 in

DRF2TA2421ASTNJN0 Documents


Frequently Asked questions

Is an air handler or furnace better?

Both Durastar’s furnaces and air handlers offer dependable options for distributing even airflow throughout your home. When selecting between the two, consider your location and climate. For areas with long warm seasons, an air handler will likely be more energy-efficient, however, we recommend discussing your options with a licensed contractor to ensure the best combinations of HVAC products for your home.

What does variable speed mean?

Variable speed air handlers operate at the lowest possible speed to achieve your desired indoor temperature. This results in increased energy efficiency. Variable speed units are also quieter than standard units.

Is a two-stage air handler more efficient than a single-stage air handler?

Yes, when paired with a two-stage outdoor unit, both units will operate on low capacity during milder days, requiring less energy; and switch to full capacity and power when needed.

What is an inverter compressor?

It is a compressor that seamlessly adjusts speeds to ensure the lowest energy output. Unlike standard compressors which may turn off and on repeatedly until the temperature is achieved, inverter compressors operate with a drive that modulates its speed, using minimal power to maintain your desired indoor temperature. As a result, these types of compressors use significantly less energy and have a longer life because they are not turned off and on to full power repeatedly.

Inverter compressor diagram

What are the differences between variable speed, ECM, and PSC blower motors?

A variable-speed blower motor offers the most efficiency and adjusts speed to maintain consistent temperature control. It can also detect your home’s static pressure. Furthermore, if ducts are dirty or clogged it will automatically adjust to maintain constant airflow. In comparison to other types, variable-speed motors offer superior dehumidification because of their ability to operate at low RPMs. This results in a more comfortable space. ECM, or electronically commutated motors, are equipped with a regulator so you can select the most efficient settings for your home. Then, it adjusts its torque to maintain your desired indoor temperature. This is slightly different from variable speed motors in that they adjust to maintain a constant CFM (or airflow). PSC, also known as a permanent split capacitor, runs at one constant speed.
