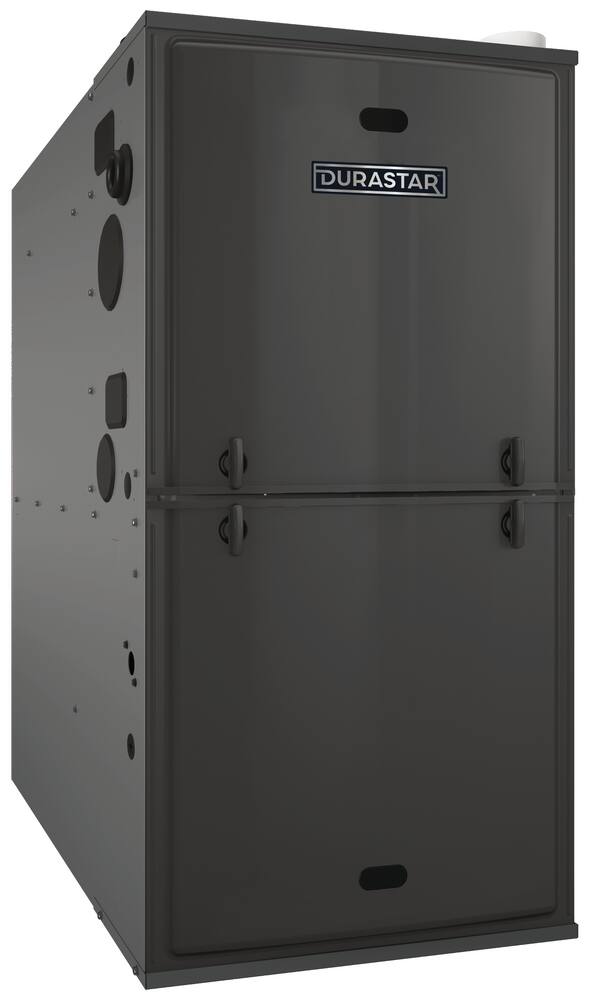

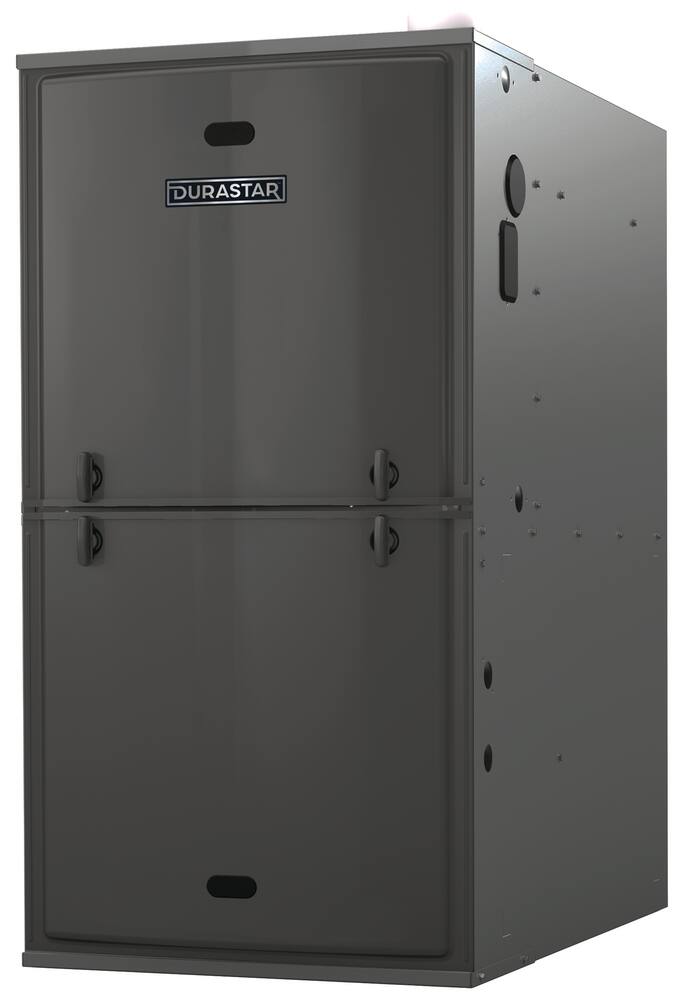

DR95UCT0701317SA

Models

DR95UCT0701317SA

Warranty


No one stands behind their brand like we do. Durastar offers durable airflow during even the harshest heating and cooling conditions. In addition, our warranty provides maximum coverage for total peace of mind.

Extended warranty options are available for both parts and labor. Talk to your contractor for more information.

Learn More
Explore tax credits and rebates

DR95UCT0701317SA Features


  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Not all Durastar products may be available in all areas currently. See your local Durastar distributor for details.
  • Constant torque ECM motor maintains efficiency across a range of operating speeds for increased energy savings
  • Direct spark ignition system is one of the most dependable ignition systems on the market
  • Blocked drain sensor will prevent water spillage and potential water damage to your home.
  • Aluminized steel constructed heat exchanger provides maximum corrosion resistance and thermal fatigue reliability. It is also removable for improved serviceability
  • Patented heat exchanger design provides improved airflow and reduces operating sound
  • Low profile 34" cabinet is ideal for space constrained installations
  • Hemmed edges on cabinets and doors
  • 1/4 turn door knobs for tool less access

DR95UCT0701317SA


  • AFUE: 95.00 %
  • Application: Residential
  • Auto Switching Heat/Cool?: No
  • BTU: 70000
  • BTU Heat Rating: 66500 Btu/h
  • Blower Type: Direct Drive
  • CFM: 1198 ft3/min
  • Coating: Aluminum
  • Color/Finish Category: Greys
  • Color/Finish Name: Iron Ore Grey
  • Communicating: Non-Communicating
  • Condensing: No
  • Configuration: Multi,Upflow
  • Energy Star Compliant: Yes
  • Fan Speeds: 5
  • Fuel Type: Natural Gas
  • Green Product: Yes,Energy Star
  • Height: 34 in
  • Horsepower: 1/2 hp
  • Ignition System: Direct Spark Ignition
  • Length: 28 in
  • Max CFM: 1198 cfm
  • MBH: 70
  • Phase: Single Phase
  • Power Source: Gas
  • Refrigerant: R-410A
  • Sound Blanket: No
  • Specifications - ANSI: ANSI Z21.47
  • Specifications - CSA Certified: CSA 2.3,CSA C22.2
  • Specifications - ETL Listed: No
  • Specifications - UL Listed: UL 1995
  • Stages: Single
  • Style Name: DR95UCT Series
  • Tonnage: 3 Ton
  • Vent or Ducted or Ductless: Ducted
  • WaterSense Labeled: No
  • Weight: 132 lb
  • Width: 17 in

DR95UCT0701317SA Documents


Frequently Asked questions

Is an air handler or furnace better?

Both Durastar’s furnaces and air handlers offer dependable options for distributing even airflow throughout your home. When selecting between the two, consider your location and climate. For areas with long warm seasons, an air handler will likely be more energy-efficient, however, we recommend discussing your options with a licensed contractor to ensure the best combinations of HVAC products for your home.

What does variable speed mean?

Variable speed air handlers operate at the lowest possible speed to achieve your desired indoor temperature. This results in increased energy efficiency. Variable speed units are also quieter than standard units.

Is a two-stage air handler more efficient than a single-stage air handler?

Yes, when paired with a two-stage outdoor unit, both units will operate on low capacity during milder days, requiring less energy; and switch to full capacity and power when needed.

What is AFUE?

Annual Fuel Utilization Efficiency (AFUE), is a standardized measure of efficiency for how furnaces and boilers convert energy to useable heat.

What is the main difference between a furnace and a heat pump?

Furnaces burn fuel to generate heat whereas a heat pump draws air from outdoors across the condenser coil, either releasing heat to the outdoor air when in cooling mode or absorbing heat from the outdoors, even in the coldest weather in heating mode.

How often should my furnace be serviced?

Durastar recommends your furnace to be serviced at least once a year to ensure it is functioning optimally and providing maximum comfort.
