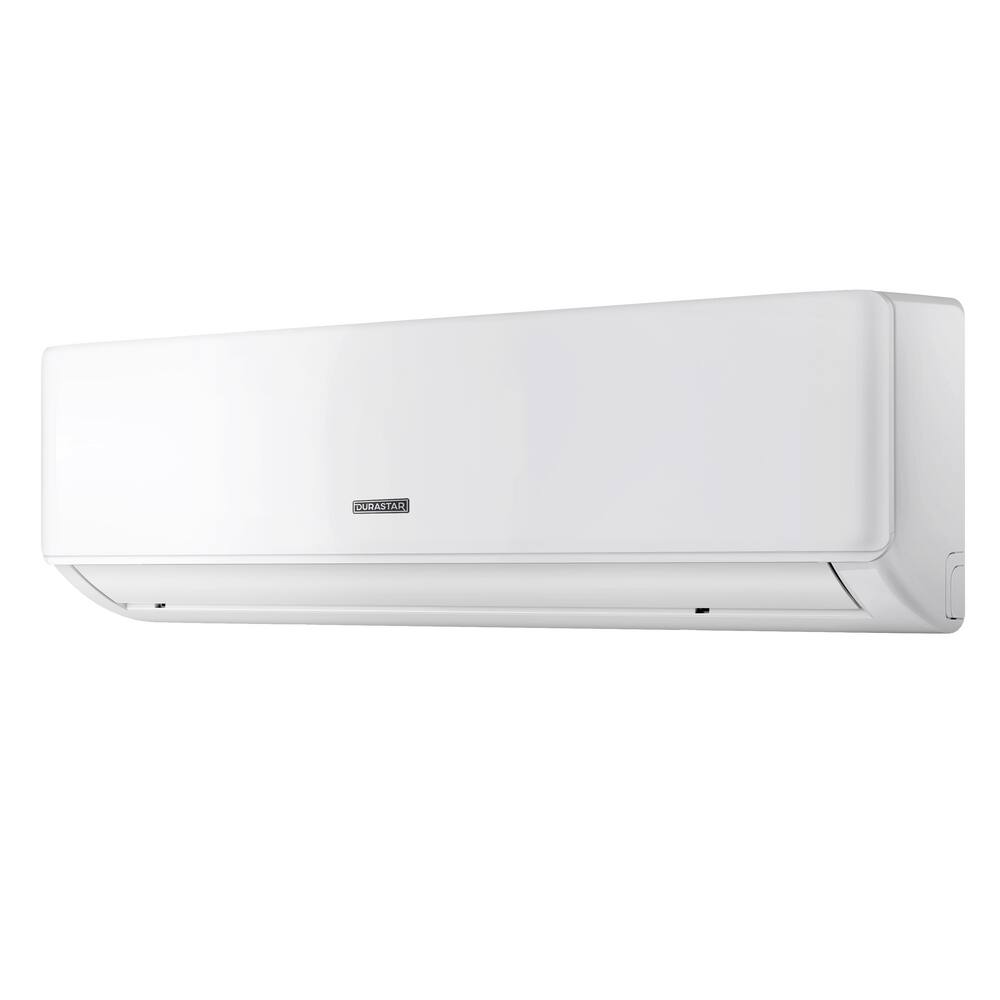

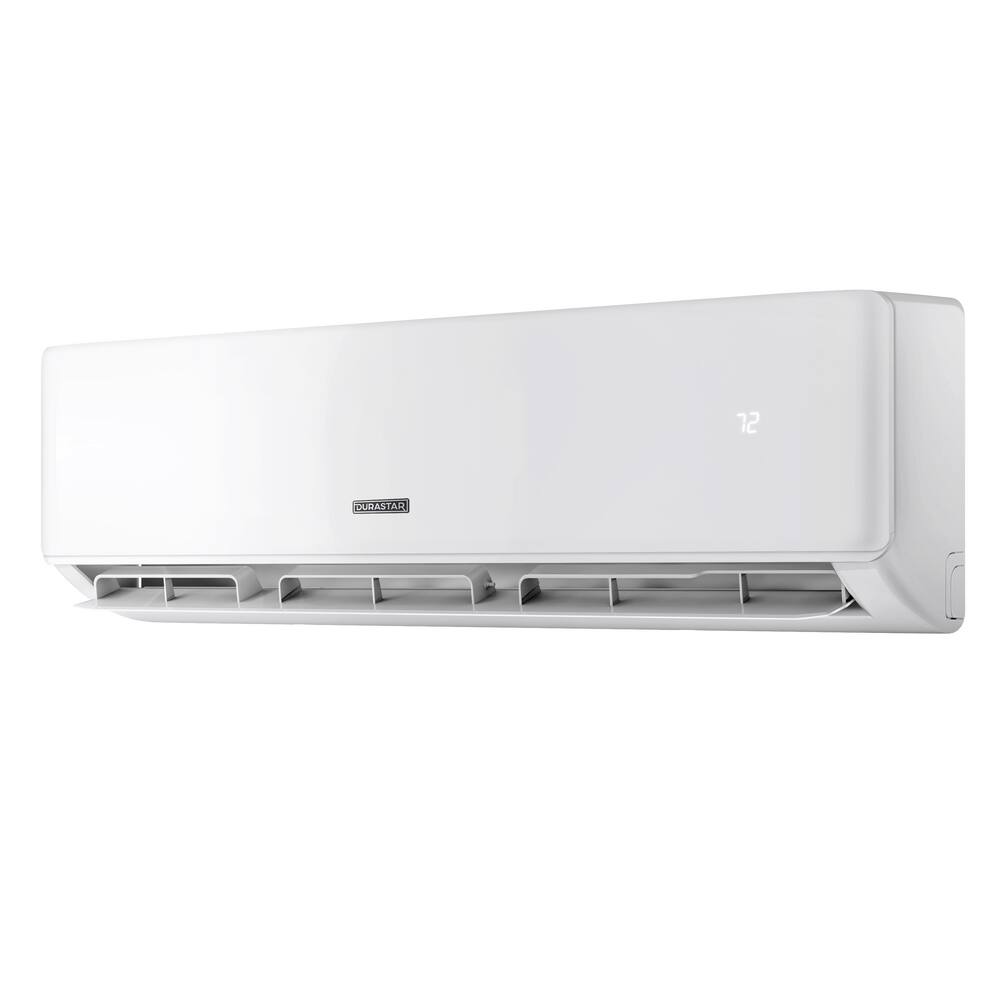

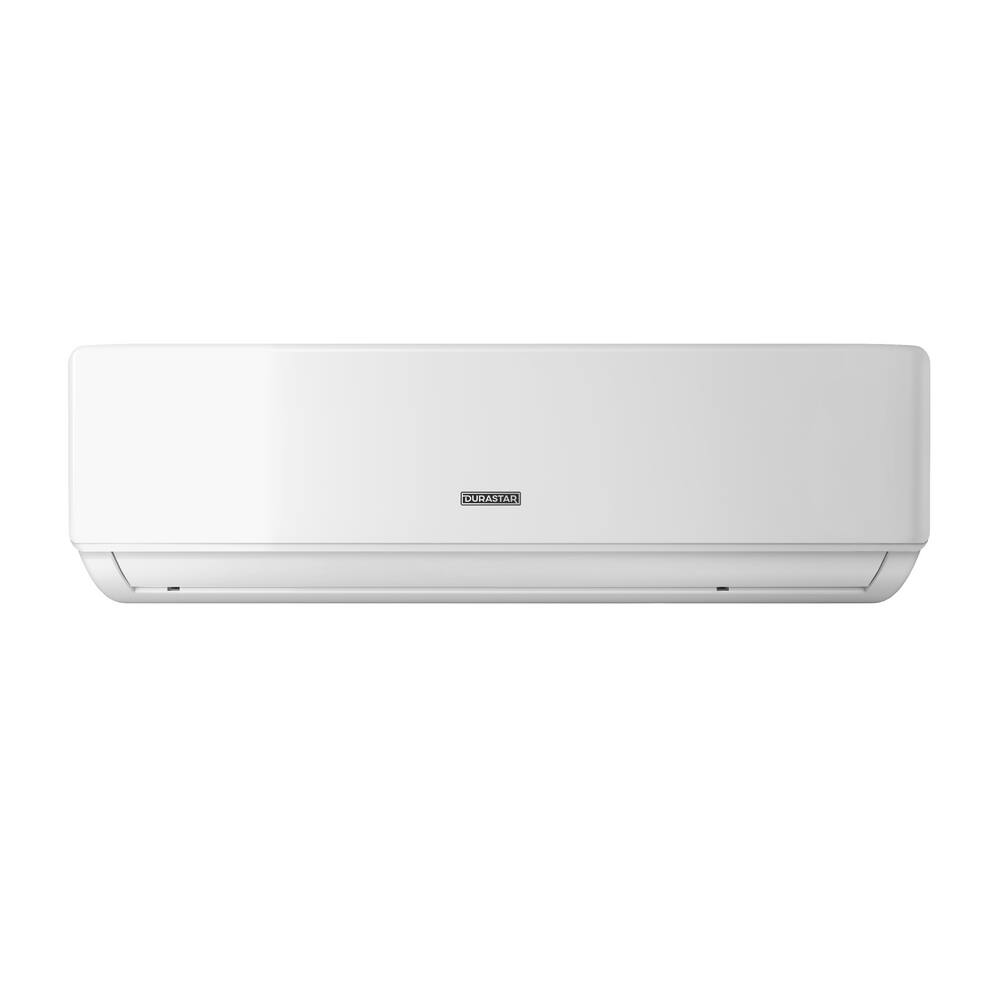

DRAW24F1A

Models

DRAW24F1A

Warranty


No one stands behind their brand like we do. Durastar offers durable airflow during even the harshest heating and cooling conditions. In addition, our warranty provides maximum coverage for total peace of mind.

Extended warranty options are available for both parts and labor. Talk to your contractor for more information.

Learn More
Explore tax credits and rebates

DRAW24F1A Features


  • Single zone and multizone compatible
  • Anti-corrosion fin coating
  • Quiet operation
  • Follow me mode
  • Turbo mode
  • Please note: A flare is what needs to go on the end of line to keep the nut on and make it fit securely and not leak. The line does not usually come flared so the installer has to make it
  • High efficiency up to 22.8 SEER

DRAW24F1A


  • AMP: 0.45
  • Application: Residential
  • Auto Switching Heat/Cool?: Yes
  • BTU: 24000
  • BTU Cooling Rating: 24000 Btu/h
  • BTU Heat Rating: 25000 Btu/h
  • CFM: 618 ft3/min
  • Compressor Type: Inverter
  • Decibel Rating (dB): 47.5 dB
  • Depth: 8-7/8 in
  • Depth of Trench: 8-7/8 in
  • EER: 12.5
  • Energy Star Compliant: Yes
  • Green Product: Yes,Energy Star
  • Height: 13-3/16 in
  • HSPF: 10
  • Indoor / Outdoor: Indoor
  • Installation Type: Wall Mount
  • Liquid Line (OD): 3/8 in
  • Max Fuse Size: 15
  • MBH: 24
  • Phase: Single Phase
  • Refrigerant: R-410A
  • SEER: 22.8
  • Specifications - CSA Certified: CSA-C22.2 No. 236
  • Specifications - ETL Listed: Yes
  • Specifications - UL Listed: UL 1995
  • Suction Line (OD): 5/8 in
  • Tonnage: 2 Ton
  • Volts: 208/230V
  • Weight: 31 lb
  • Width: 42-1/2 in
  • Zones: 1

Frequently Asked questions

What is a mini-split system?

Mini-splits are a ductless solution to heating and cooling individual rooms or spaces. They are discrete and reduce installation efforts.

Can I have a multi-zone mini-split system?

Yes! Mini-splits can be configured for single-zone or multi-zone applications. Each unit is connected to one outdoor unit.

Do I need a contractor to purchase and install my mini-split system?

You can purchase Durastar’s mini-split units directly from Build with Ferguson. However, we recommend working with a contractor to ensure you acquire the best combination of products, install the system properly, and take full advantage of the products’ warranty. Please note that warranties may be voided if not installed by a licensed professional.

What is an HVAC evaporator coil?

Evaporator coils are located inside your home and work with your air conditioner and furnace. Depending on whether you are heating or cooling a space, the coils pull in existing air to cool it or they add heat to warm it up. In essence, coils are one of the most important pieces to your HVAC system and are responsible for the heat exchange.

What is the benefit of an all-aluminum coil?

Unlike copper which may rust over time, all-aluminum coils do not. In addition, they are more resistant to micro-leaks which increases the longevity and efficiency of your unit.

What is the difference between an 'A' coil and 'N' coil?

‘A’ coils are formed using two slabs of fins – these types of coils have a surface area similar to a slab coil, however, they are installed without transition ducting. Alternatively, ‘N’ coils use three fin slabs. This arrangement increases the coil’s surface area and, therefore, accommodates more refrigerant. As a result, it operates more efficiently and generates more heat.
