Floor-Mounted Mini-Splits
A compact footprint with powerful heating and cooling capacities.
Durastar’s floor-mounted mini-splits offer a discrete solution for controlling the temperature in your favorite spaces. When it comes to heating and cooling family rooms, home offices, small cottages, and more, mini-splits provide personal comfort without the hassle of ductwork or noise from window units. Instead, rely on our high-efficiency, low-profile, and quiet mini-splits. Talk with your contractor to determine which HVAC solutions fit your space and needs best. From floor-mounted mini-splits and ceiling cassettes to outdoor mini-split heat pumps, Durastar offers a comprehensive selection of reliable and efficient temperature control products.
Durastar mini-splits are available nationwide for direct purchase through Build with Ferguson. We recommend working with your HVAC contractor to select and install the best combination of Durastar products for your home. The product warranty may be voided if it is not installed by a licensed HVAC contractor.
Models
Warranty
No one stands behind their brand like we do. Durastar offers durable airflow during even the harshest heating and cooling conditions. In addition, our warranty provides maximum coverage for total peace of mind.
Extended warranty options are available for both parts and labor. Talk to your contractor for more information.
Learn MoreExplore tax credits and rebatesFloor-Mounted Mini-Splits Features
- Single zone and multizone compatible
- Anti-corrosion fin coating
- Quiet operation
- Matched Durastar systems have heating capabilities as low as -13°F
- Turbo mode
- Please note: A flare is what needs to go on the end of line to keep the nut on and make it fit securely and not leak. The line does not usually come flared so the installer has to make it

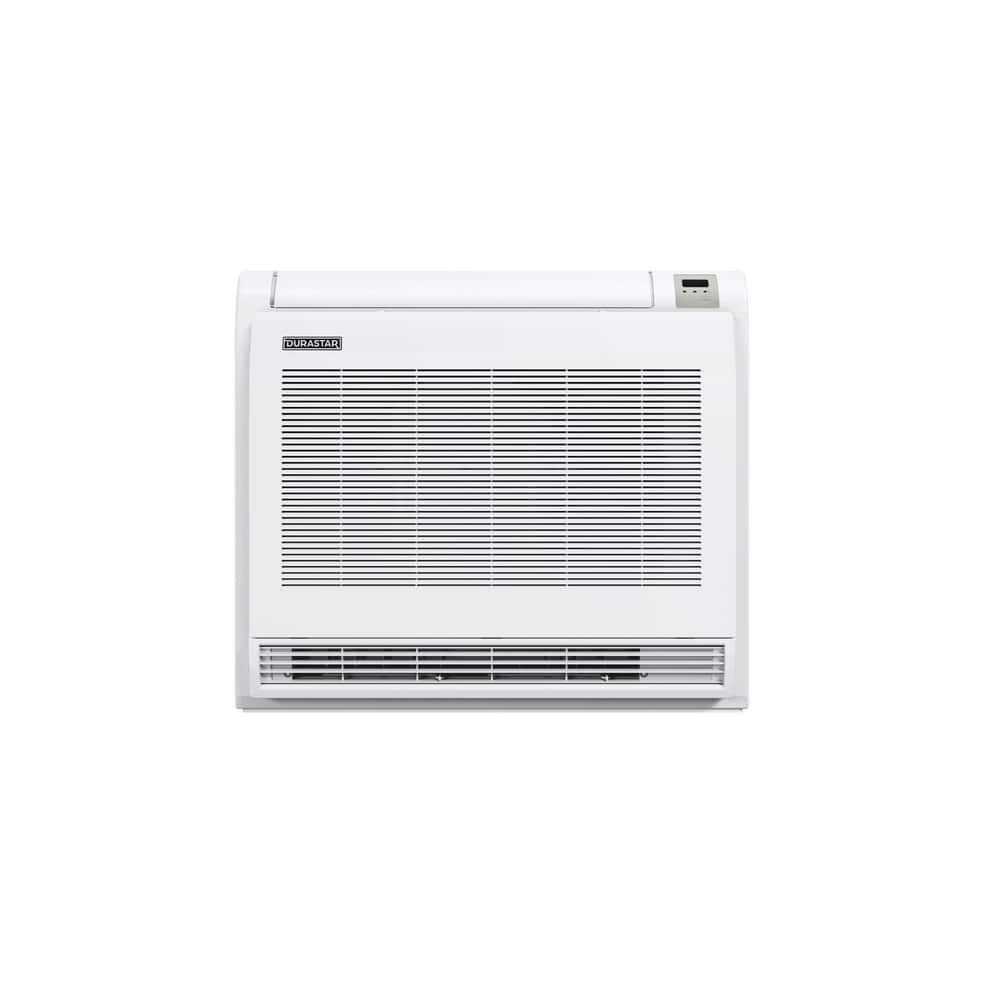

DRAS12F1B
- Application: Residential
- Auto Switching Heat/Cool?: Yes
- BTU: 12000
- BTU Cooling Rating: 12000 Btu/h
- BTU Heat Rating: 12000 Btu/h
- CFM: 321 ft3/min
- Color/Finish Category: Whites
- Color/Finish Name: White
- Compressor Type: Inverter
- Condensing: No
- Control Type: Remote
- Decibel Rating (dB): 48 dB
- Depth: 8-1/4 in
- Depth of Trench: 8-1/4 in
- EER: 13
- Energy Star Compliant: Yes
- Green Product: Yes,Energy Star
- Height: 23-5/8 in
- HSPF: 10
- Indoor / Outdoor: Indoor
- Input (MBH): 12 MBH
- Installation Type: Floor Mount
- Line Set Type: Mini-Split
- Liquid Line (OD): 1/4 in
- Max CFM: 365 cfm
- Maximum Temperature: 86
- MBH: 12
- Minimum Temperature: 62
- Origin: Global
- Phase: Single Phase
- Product Type: Mini-Split Evaporator
- Refrigerant: R-410A
- SEER: 20.5
- Specifications - CEC Compliant: For Sale in CA
- Specifications - CSA Certified: CSA-C22.2 NO. 236
- Specifications - ETL Listed: Yes
- Specifications - UL Listed: UL 1995
- Suction Line (OD): 1/2 in
- Temperature Range: 62 to 86 Deg F
- Tonnage: 1 Ton
- Type: DRAS12F1B
- Vent or Ducted or Ductless: Ductless
- Volts: 208/230V
- WaterSense Labeled: No
- Weight: 32.6 lb
- Width: 27-9/16 in
- Zones: 1
Frequently Asked questions
What is a mini-split system?
Mini-splits are a ductless solution to heating and cooling individual rooms or spaces. They are discrete and reduce installation efforts.
Can I have a multi-zone mini-split system?
Yes! Mini-splits can be configured for single-zone or multi-zone applications. Each unit is connected to one outdoor unit.
Do I need a contractor to purchase and install my mini-split system?
You can purchase Durastar’s mini-split units directly from Build with Ferguson. However, we recommend working with a contractor to ensure you acquire the best combination of products, install the system properly, and take full advantage of the products’ warranty. Please note that warranties may be voided if not installed by a licensed professional.
What is an HVAC evaporator coil?
Evaporator coils are located inside your home and work with your air conditioner and furnace. Depending on whether you are heating or cooling a space, the coils pull in existing air to cool it or they add heat to warm it up. In essence, coils are one of the most important pieces to your HVAC system and are responsible for the heat exchange.
What is the benefit of an all-aluminum coil?
Unlike copper which may rust over time, all-aluminum coils do not. In addition, they are more resistant to micro-leaks which increases the longevity and efficiency of your unit.
What is the difference between an 'A' coil and 'N' coil?
‘A’ coils are formed using two slabs of fins – these types of coils have a surface area similar to a slab coil, however, they are installed without transition ducting. Alternatively, ‘N’ coils use three fin slabs. This arrangement increases the coil’s surface area and, therefore, accommodates more refrigerant. As a result, it operates more efficiently and generates more heat.
How to talk to your contractor
Learn how to talk the talk with a few of our top tips. We cover important questions to ask your HVAC contractor, common mistakes when buying a new system, and more.
Learn More
