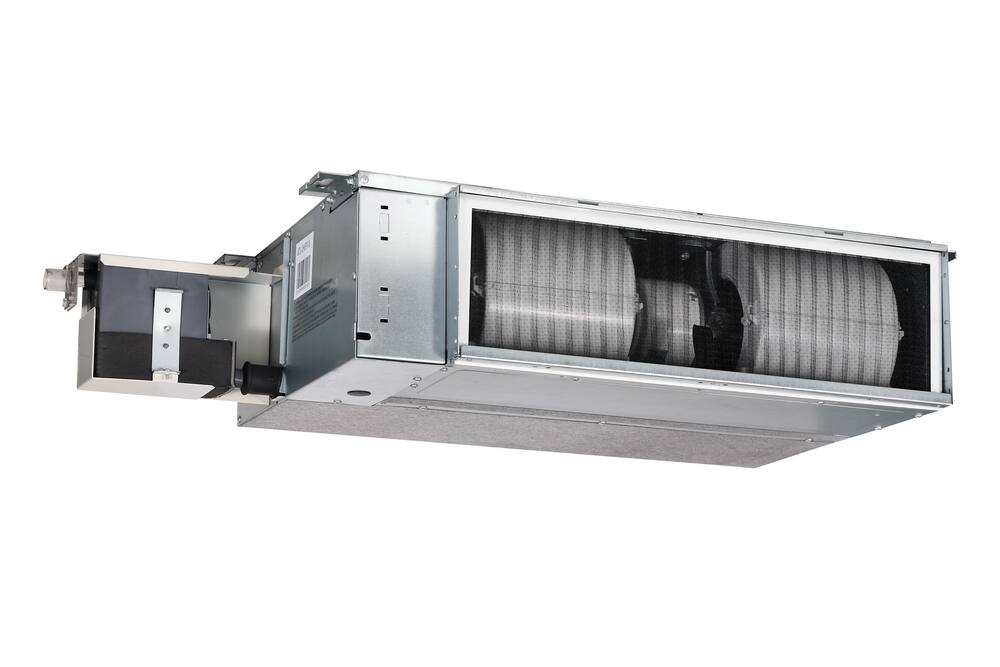

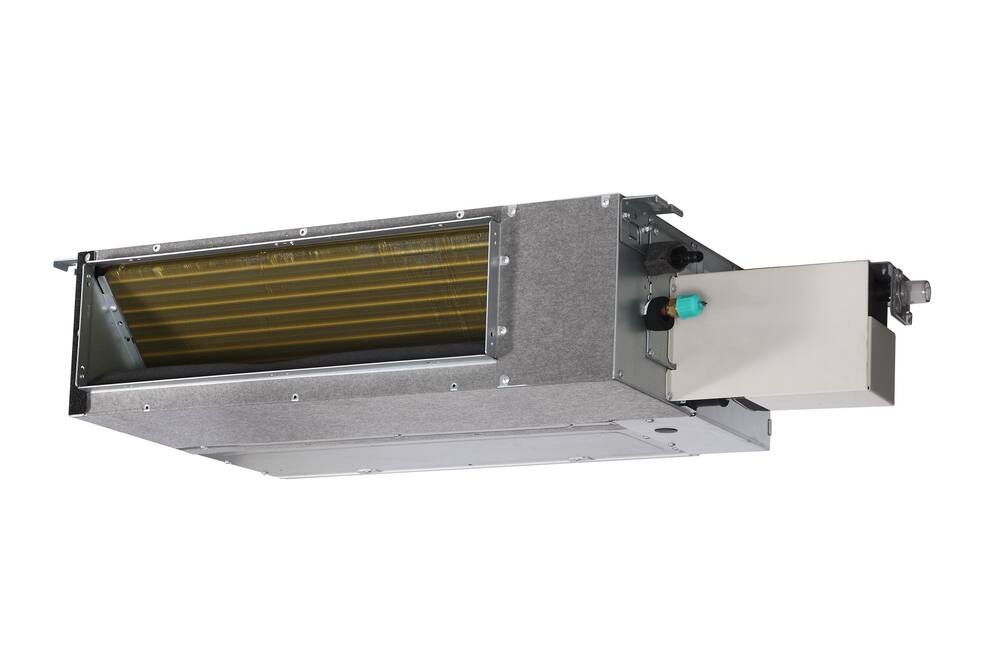

Low Static Horizontal Slim Ducted Mini-Splits - Low GWP
Install these low-profile units for hidden, whisper-quiet heating and cooling.
Low static horizontal slim ducted mini-splits offer discrete, area-specific temperature control with a wired thermostat. Compatible with single-zone and multi-zone applications, these units are easily retrofitted into existing registers and can be installed on the floor or wall. With a minimum sound level as low as 32 decibels, this heating and cooling solution is quiet and offers high efficiency.
For the ultimate solution to ductless heating and cooling, talk with your contractor about pairing mini-split indoor units and mini-split heat pumps in order to achieve maximum comfort.
Durastar mini-splits are available nationwide for direct purchase through Ferguson Home. We recommend working with your HVAC contractor to select and install the best combination of Durastar products for your project. The product warranty may be voided if it is not installed by a licensed HVAC contractor.
Models
Low Static Horizontal Slim Ducted Mini-Splits - Low GWP Features
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Single zone and multizone compatible
- Static pressure up to 0.4 in. WC
- Horizontal and vertical installation
- External drain pump included (in horizontal installation only)

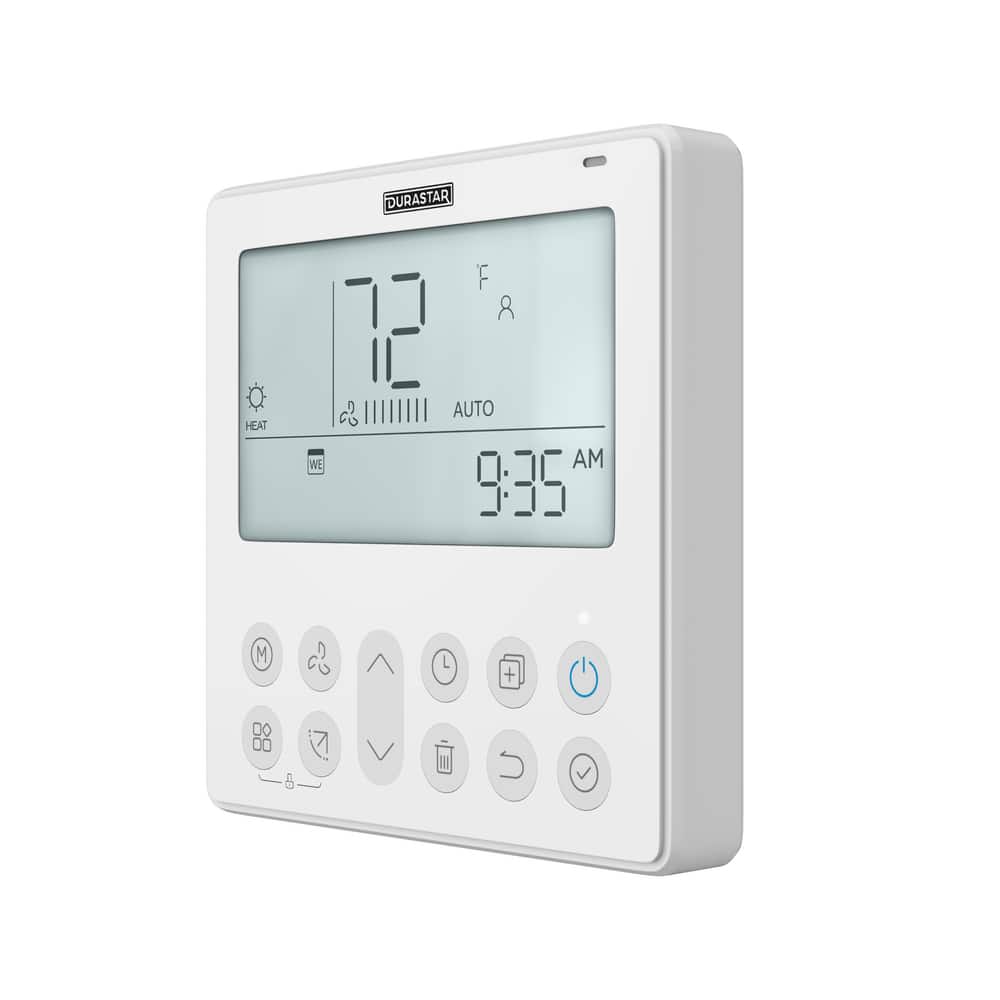

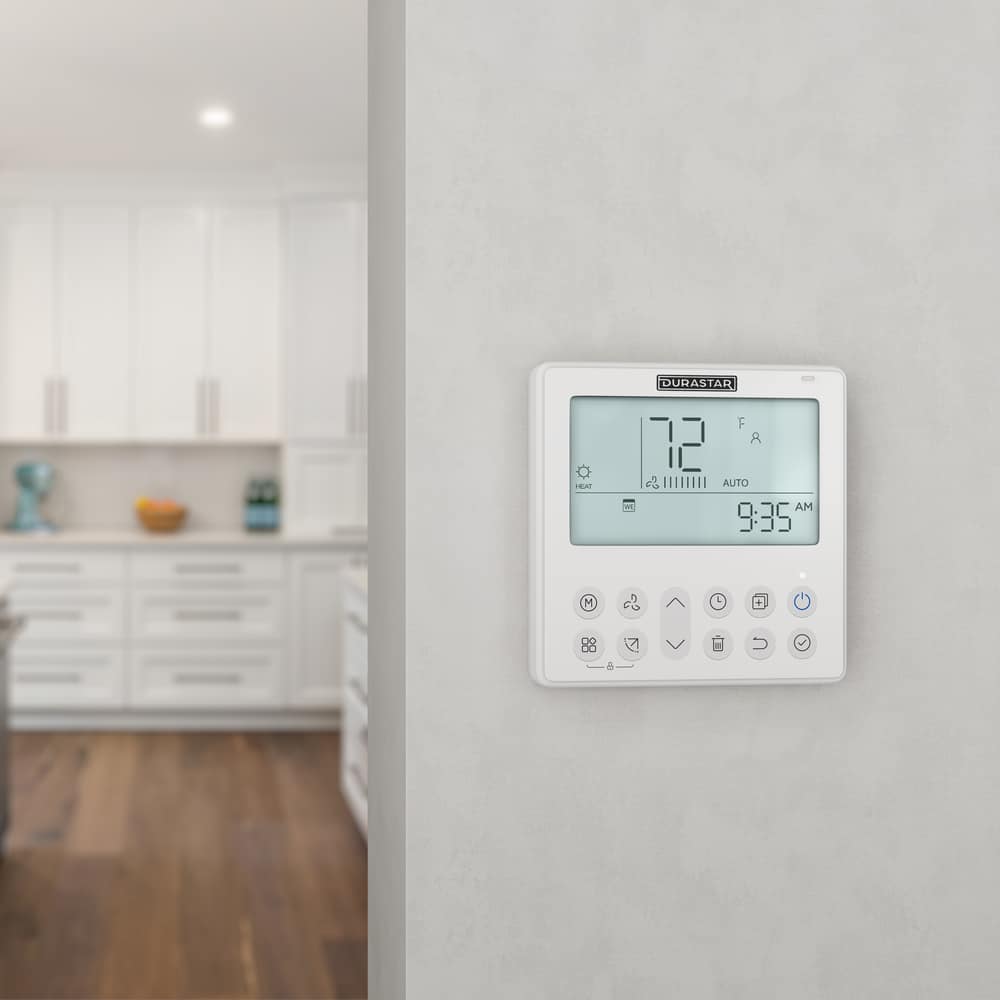

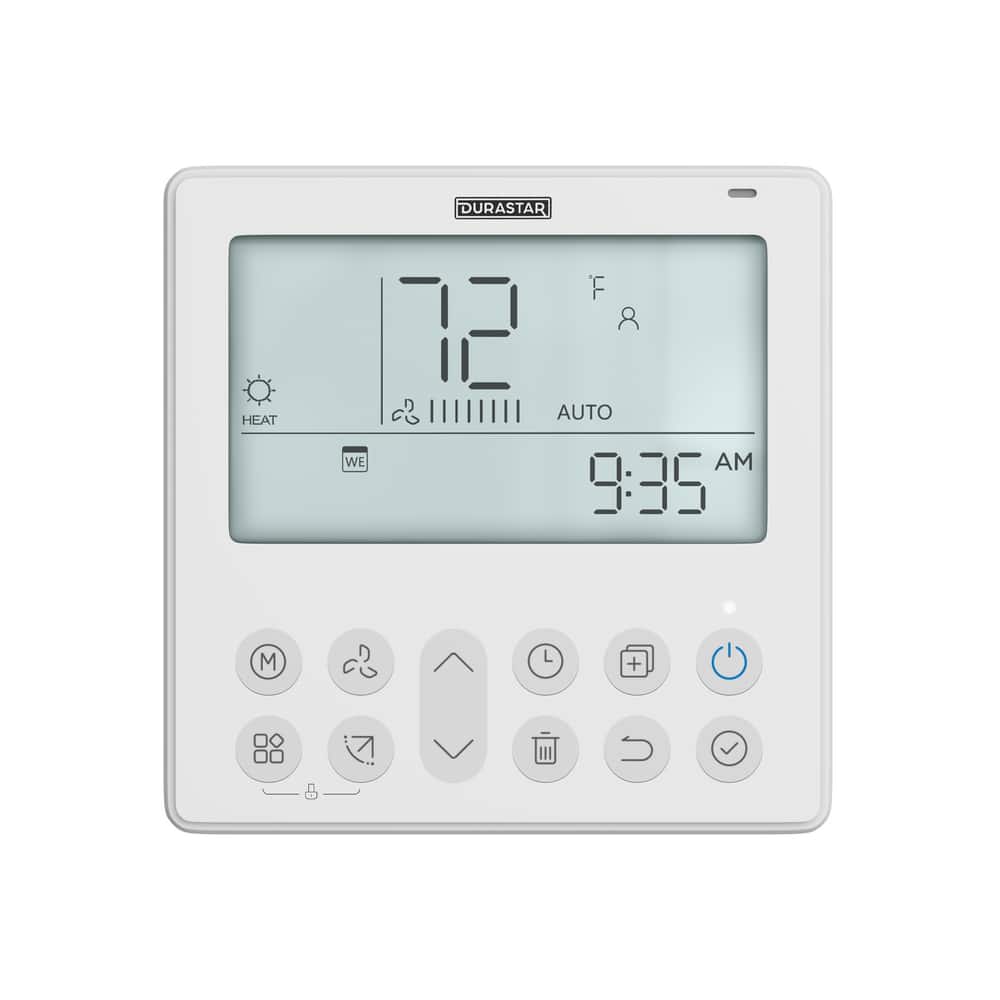

- DRSTAT101 programmable wired thermostat included
- Turbo, ECO, Active Clean, Sleep modes and more
- Anti-corrosion fin coating
- Designed for Sustainability with Low GWP and Refrigerant Detection System
DRADL0612F2A
- A2L Compatible: Yes
- Application: Residential
- BTU: 12000
- BTU Cooling Rating: 12000 Btu/h
- Energy Star Compliant: Yes
- Height: 7-7/8 in
- Indoor / Outdoor: Indoor
- Length: 19-15/16 in
- MBH: 12
- Material: Steel
- Maximum Overcurrent Protection (MOP): 15
- Maximum Temperature: 122
- Minimum Circuit Ampacity (MCA): 3
- Volts: 208/230V
- Width: 27-9/16 in
Reviews
Frequently Asked questions
What’s more important, HSPF or SEER?
If you live in an area where winters are mild, then pay extra attention to the SEER rating. Conversely, if you live in the north where winters are more extreme, then the HSPF value is more important.
What are the main differences between a heat pump and a mini-split heat pump (otherwise known as a ductless heat pump)?
Generally, heat pumps are integrated into your home’s central heating and cooling system. That means the heat it provides travels through ducts into various rooms throughout your home. Alternatively, mini-split heat pumps, or ductless heat pumps, distribute heat directly into the room where they are installed.
What is HSPF2?
HSPF2 stands for Heating Seasonal Performance Factor 2. HSPF2 is a standardized rating used by all heat pump manufacturers to compare energy efficiencies between heat pumps. The higher the HSPF2, the more efficient the system operates during cold seasons.
What is a mini-split system?
Mini-splits are a ductless solution to heating and cooling individual rooms or spaces. They are discreet and reduce installation efforts.
Can I have a multi-zone mini-split system?
Yes! Mini-splits can be configured for single-zone or multi-zone applications. Each unit is connected to one outdoor unit. Optimize your comfort with mini-split accessories such as wifi adapters and smart thermostats.
Do I need a contractor to purchase and install my mini-split system?
You can purchase Durastar’s mini-split units directly from Ferguson Home. However, we recommend working with a contractor to ensure you acquire the best combination of products, install the system properly, and take full advantage of the products’ warranty. Please note that warranties may be voided if not installed by a licensed professional.
What is a multi-zone ductless unit?
A multi-zone ductless unit offers customers a duct-free solution for whole-home heating and cooling. Like mini-splits, these systems have one outdoor unit, however, the outdoor unit connects with up to six indoor units for total comfort. Pair with mini-split accessories for ultimate comfort.
Where are mini-split units mounted?
Mini-split units offer customers flexibility in more ways than one. They can be mounted on the ceiling, wall, or floor. In addition, with an air handler, mini-splits are simple to integrate into existing ductwork.
Are mini-split units loud?
Thanks to their DC motors, inverter compressors, and compact design, most mini-split solutions offer quiet operation and discreet mounting options. Before purchasing, check the unit’s decibel rating (dB)as a reference to compare units.
Where can I buy a mini-split air conditioner?
Durastar’s mini-splits are available for purchase through Ferguson Home. Although these ductless air conditioners can be purchased directly, we recommend working with an HVAC contractor. Not only does this ensure the most suitable combination of HVAC products for your application, but it also secures the full extent of the manufacturer’s warranty.
