No one stands behind their brand like we do. Durastar offers durable airflow during even the harshest heating and cooling conditions. In addition, our warranty provides maximum coverage for total peace of mind.

Extended warranty options are available for both parts and labor. Talk to your contractor for more information.

Learn More
Explore tax credits and rebates

DRAC13A60BJ1NA Features

  • HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
  • Not all Durastar products may be available in all areas currently. See your local Durastar distributor for details.

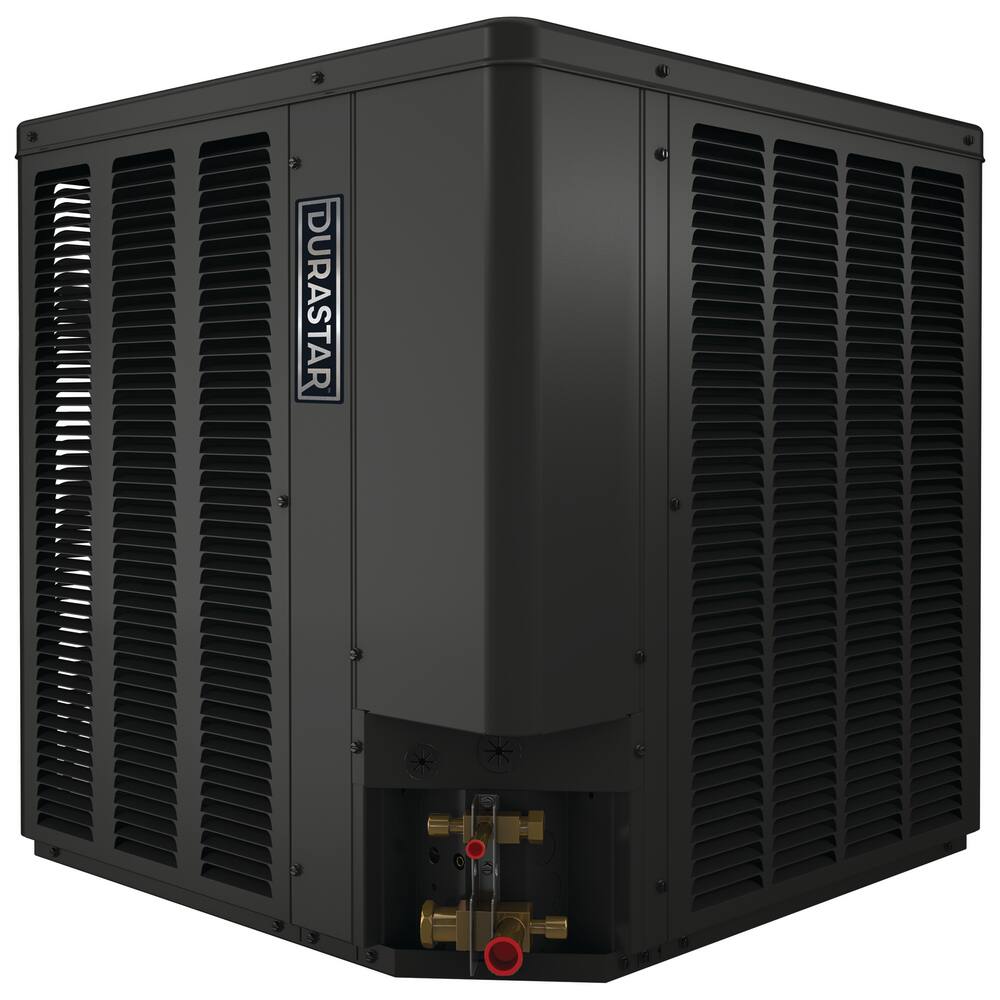

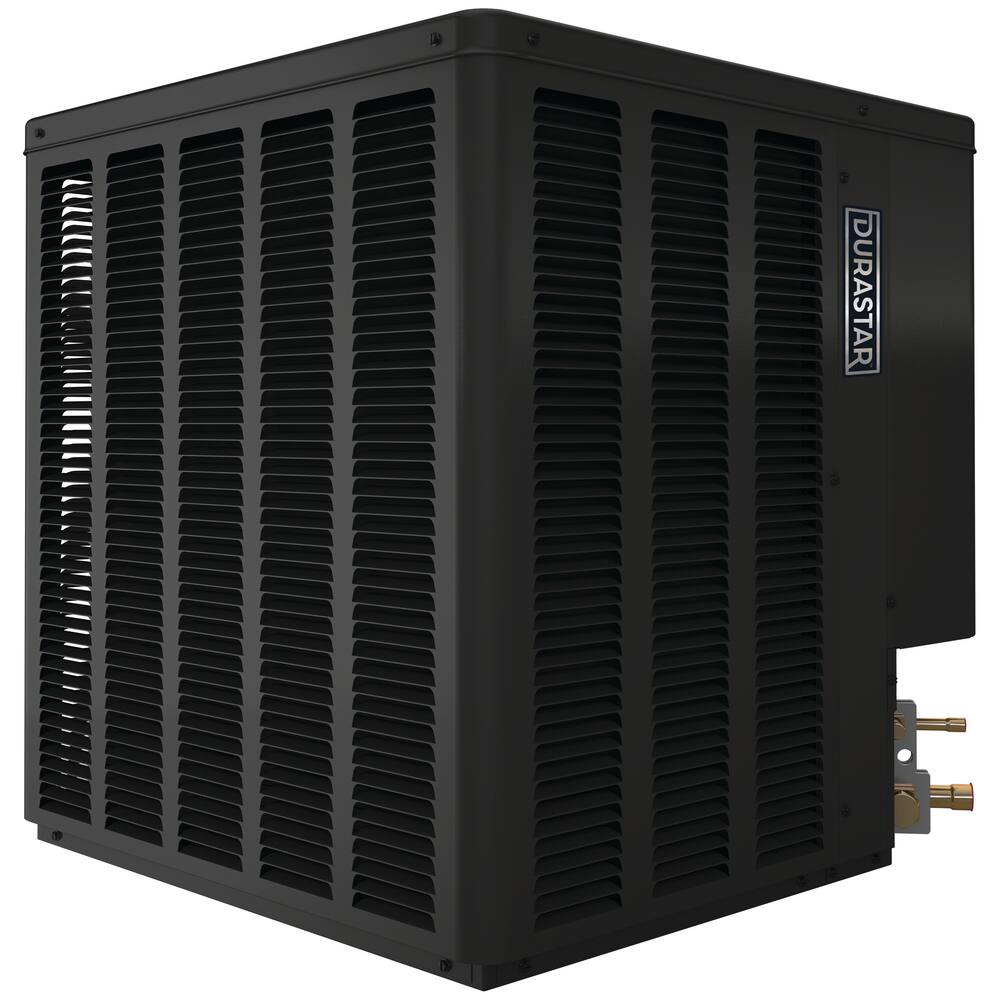

  • Sturdy louvered steel cabinet
  • Grille/Motor mount for quiet fan operation
  • Wrap-around outdoor coil improves airflow and heat transfer, providing improved home comfort and performance
  • Coils constructed with copper tubing and enhanced aluminum fins
  • Easily accessible control box
  • Filter Drier (shipped - not installed)


  • AMP: 45
  • Application: Residential
  • Auto Switching Heat/Cool?: No
  • BTU: 60000
  • BTU Cooling Rating: 60000 Btu/h
  • CFM: 3360 ft3/min
  • Color/Finish Category: Greys
  • Color/Finish Name: Iron Ore Grey
  • Communicating: Non-Communicating
  • Compressor Type: Scroll
  • Decibel Rating (dB): 76 dB
  • EER: 11
  • Green Product: Yes,Energy Star
  • Height: 35-47/50 in
  • Length: 31-63/100 in
  • Material: Steel
  • MBH: 60
  • Phase: Single Phase
  • Refrigerant: R-410A
  • SEER: 13.0
  • Sound Blanket: No
  • Specifications - CSA Certified: CSA C22.2 NO. 236
  • Specifications - ETL Listed: No
  • Specifications - UL Listed: UL 1995
  • Style Name: DRAC13 Series
  • Tonnage: 5 Ton
  • Vent or Ducted or Ductless: Ducted
  • Volts: 208/230V
  • WaterSense Labeled: No
  • Weight: 254 lb
  • Width: 31-63/100 in

DRAC13A60BJ1NA Documents

Frequently Asked questions

What is EER2?

EER2 is Energy Efficiency Ratio 2. It’s the cooling capacity of an air conditioner or heat pump unit for a specific amount of energy used in a specific testing climate.

Which AC units are the quietest?

Decibels (dB) are the unit of measure for the intensity of noise. The lower the decibel level, the quieter your unit will be. We share key specifications, such as decibels, on our product pages so you can quickly compare your options.

What does SEER2 mean?

SEER2 stands for Seasonal Efficiency Energy Ratio which compares the energy efficiencies from different central air conditioners and heat pump systems. The higher the rating, the more efficient the system.
