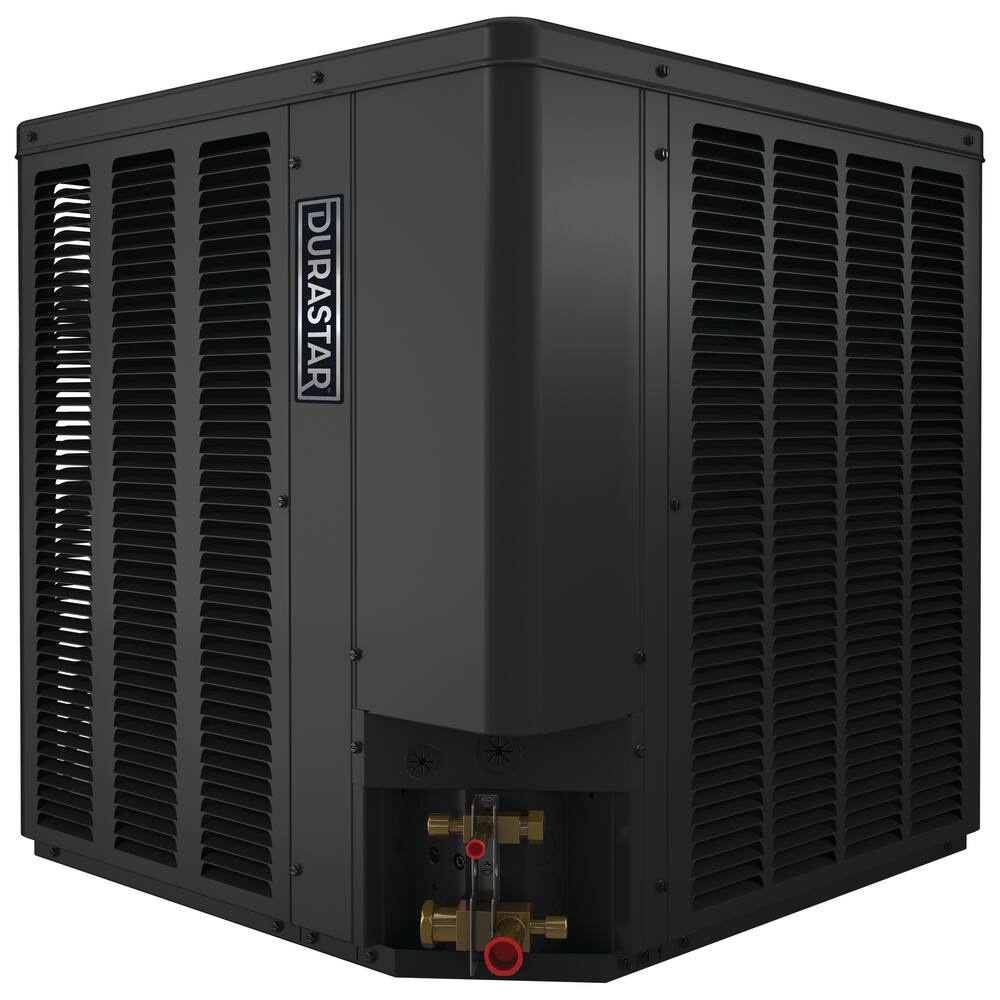

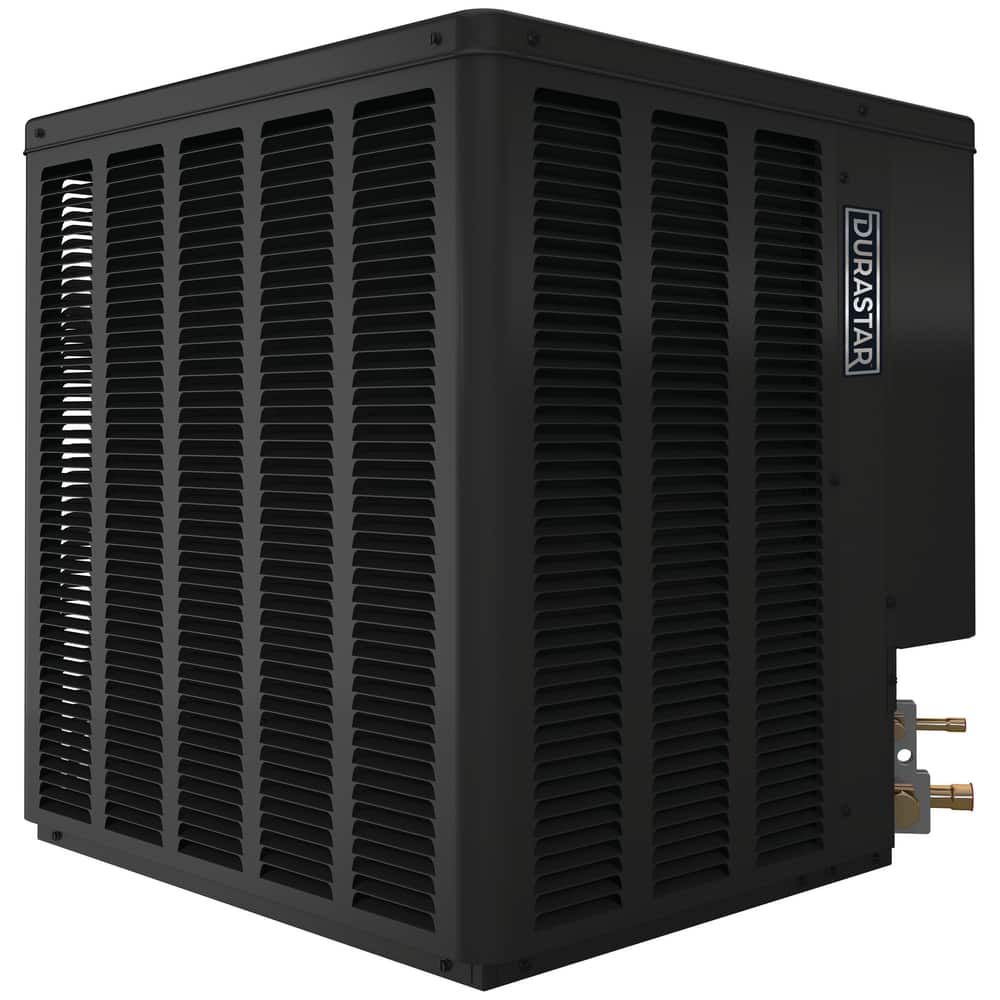

DRAC16A36AJ1NA
DRAC16A36AJ1NA Features
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Non-Compliant 2023 DOE cooling efficiency SKU. Not available for sale in the southern region. Available for sale in the northern region only.
- Not all Durastar products may be available in all areas currently. See your local Durastar distributor for details.
- Sturdy louvered steel cabinet
- Grille/Motor mount for quiet fan operation
- Wrap-around outdoor coil improves airflow and heat transfer, providing improved home comfort and performance
- Coils constructed with copper tubing and enhanced aluminum fins
- Easily accessible control box
- Filter Drier (shipped - not installed)
DRAC16A36AJ1NA
- AMP: 35
- Application: Residential
- Auto Switching Heat/Cool?: No
- BTU: 36000
- BTU Cooling Rating: 36000 Btu/h
- CFM: 3430 ft3/min
- Color/Finish Category: Greys
- Color/Finish Name: Iron Ore Grey
- Communicating: Non-Communicating
- Compressor Type: Scroll
- Decibel Rating (dB): 76 dB
- EER: 12.5
- Energy Star Compliant: Yes
- Green Product: Yes,Energy Star
- Height: 35-19/50 in
- Horsepower: 1/5 hp
- Length: 31-63/100 in
- Liquid Line (OD): 3/8 in
- Material: Steel
- MBH: 36
- Phase: Single Phase
- Refrigerant: R-410A
- RPM: 850
- SEER: 16.0
- Sound Blanket: No
- Specifications - CSA Certified: CSA C22.2 NO. 236
- Specifications - ETL Listed: No
- Specifications - UL Listed: UL 1995
- Style Name: DRAC16 Series
- Suction Line (OD): 3/4 in
- Vent or Ducted or Ductless: Ducted
- Volts: 208/230V
- Weight: 194 lb
- Width: 31-63/100 in
Frequently Asked questions
What is EER2?
EER2 is Energy Efficiency Ratio 2. It’s the cooling capacity of an air conditioner or heat pump unit for a specific amount of energy used in a specific testing climate.
Which AC units are the quietest?
Decibels (dB) are the unit of measure for the intensity of noise. The lower the decibel level, the quieter your unit will be. We share key specifications, such as decibels, on our product pages so you can quickly compare your options.
What does SEER2 mean?
SEER2 stands for Seasonal Efficiency Energy Ratio which compares the energy efficiencies from different central air conditioners and heat pump systems. The higher the rating, the more efficient the system.
What is an HVAC evaporator coil?
Evaporator coils are located inside your home and work with your air conditioner and furnace. Depending on whether you are heating or cooling a space, the coils pull in existing air to cool it or they add heat to warm it up. In essence, coils are one of the most important pieces to your HVAC system and are responsible for the heat exchange.
What is the benefit of an all-aluminum coil?
Unlike copper which may rust over time, all-aluminum coils do not. In addition, they are more resistant to micro-leaks which increases the longevity and efficiency of your unit.
What is the difference between an 'A' coil and 'N' coil?
‘A’ coils are formed using two slabs of fins – these types of coils have a surface area similar to a slab coil, however, they are installed without transition ducting. Alternatively, ‘N’ coils use three fin slabs. This arrangement increases the coil’s surface area and, therefore, accommodates more refrigerant. As a result, it operates more efficiently and generates more heat.
