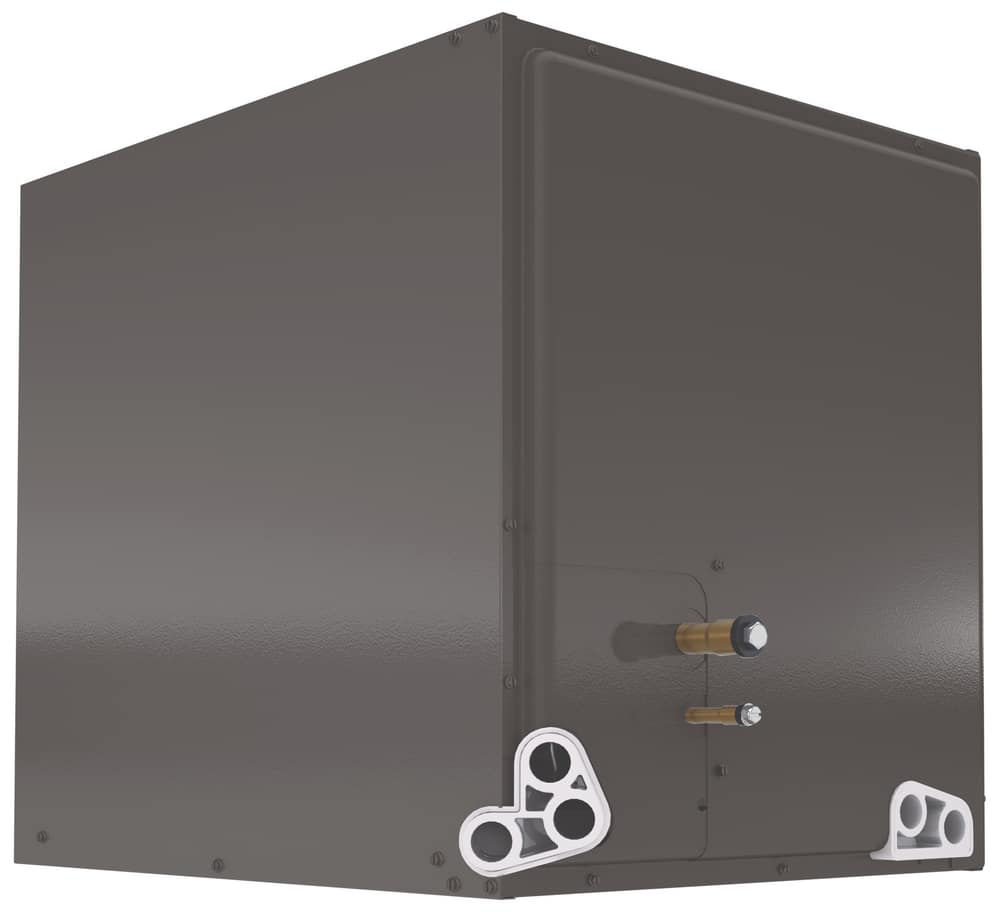

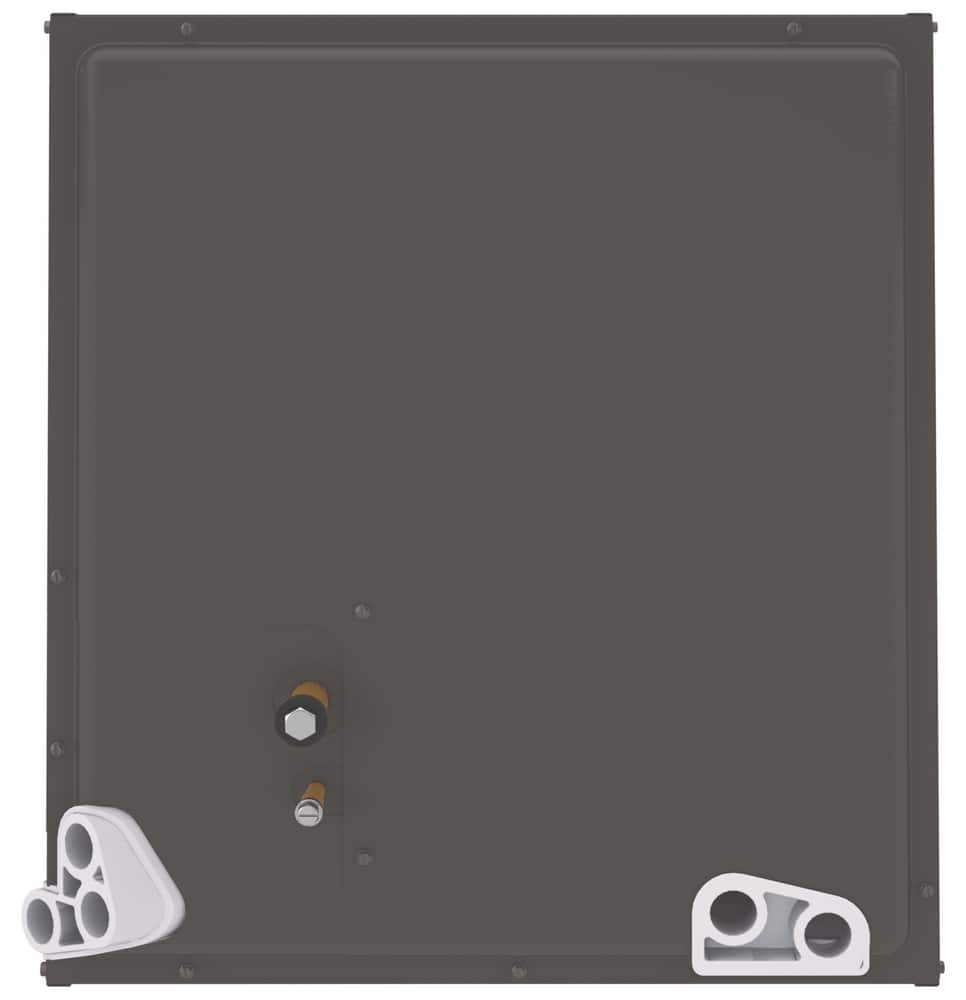

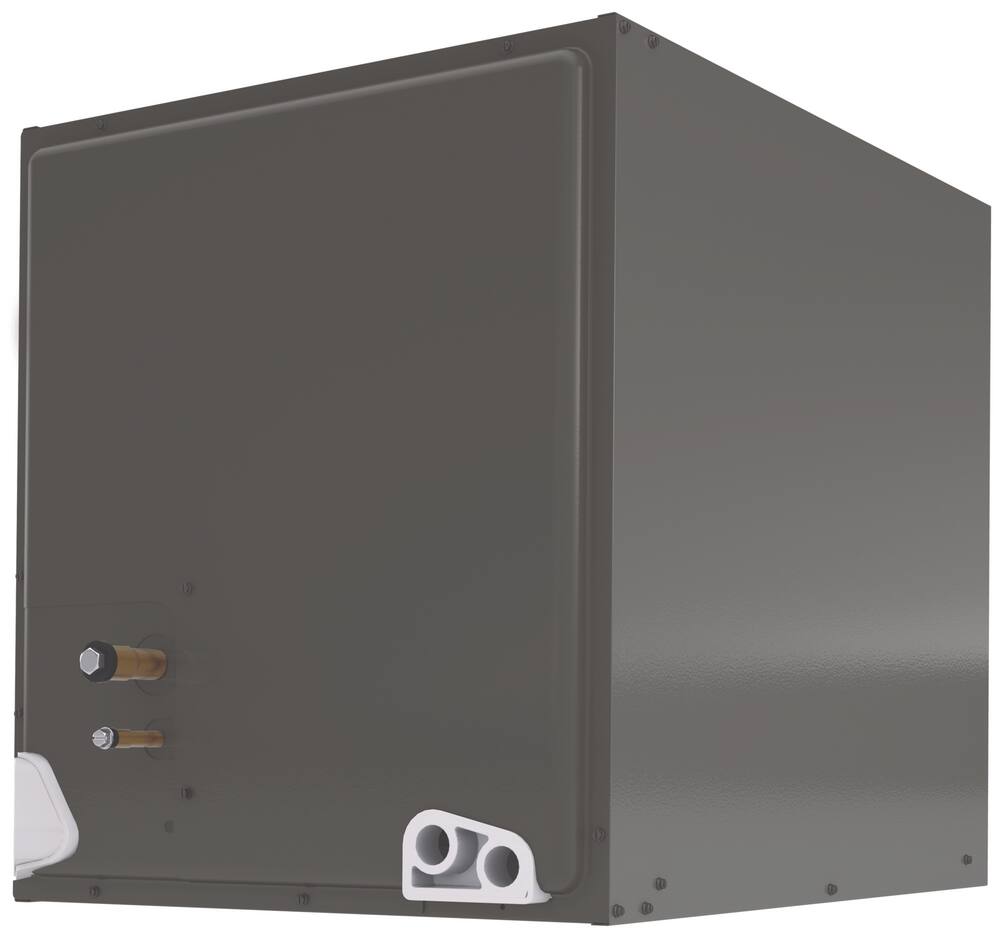

Low GWP Multi-Positional Coils
Rely on our highly tested Low GWP Multi-Positional Coils with adaptable configurations.
Low GWP Multi-positional Coils are an essential component of your heating and cooling system. Not only do they heat and cool airflow, but also they reduce the humidity in your home. With a variety of cabinet sizes and a multi-positional configuration, Durastar’s coils pair seamlessly with your furnace and airflow application. Furthermore, the all-aluminum construction and heat-resistant composite drain pan make corrosion concerns a thing of the past. Rely on Durastar and relax in comfort.
Models
Low GWP Multi-Positional Coils Features
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Constructed of aluminum fins bonded to internally grooved aluminum tubing
- Coils have copper sweat refrigerant connections
- Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
- Unique drain pan design maximizes application flexibility and condensate removal
- Refrigerant Detection System
- Designed for Sustainability with Low GWP
DRBEF2414STAAMC
- BTU: 24000
- BTU Cooling Rating: 24000 Btu/h
- Coil Type: A
- Height: 23-3/16 in
- Indoor / Outdoor: Indoor
- Length: 21-11/16 in
- Liquid Line (OD): 3/8 in
- Material: Steel
- MBH: 24
- Phase: Single Phase
- Power Source: Electric
- Refrigerant: R-454B
- Refrigerant Control: TXV
- Specifications - CEC Compliant: For Sale in CA
- Suction Line (OD): 3/4 in
- Type: DRBEF2414STAAMC
- Weight: 45 lb
- Width: 14 in
Frequently Asked questions
What is an HVAC evaporator coil?
Evaporator coils are located inside your home and work with your air conditioner and furnace. Depending on whether you are heating or cooling a space, the coils pull in existing air to cool it or they add heat to warm it up. In essence, coils are one of the most important pieces to your HVAC system and are responsible for the heat exchange.
What is the benefit of an all-aluminum coil?
Unlike copper which may rust over time, all-aluminum coils do not. In addition, they are more resistant to micro-leaks which increases the longevity and efficiency of your unit.
What is the difference between an 'A' coil and 'N' coil?
‘A’ coils are formed using two slabs of fins – these types of coils have a surface area similar to a slab coil, however, they are installed without transition ducting. Alternatively, ‘N’ coils use three fin slabs. This arrangement increases the coil’s surface area and, therefore, accommodates more refrigerant. As a result, it operates more efficiently and generates more heat.
