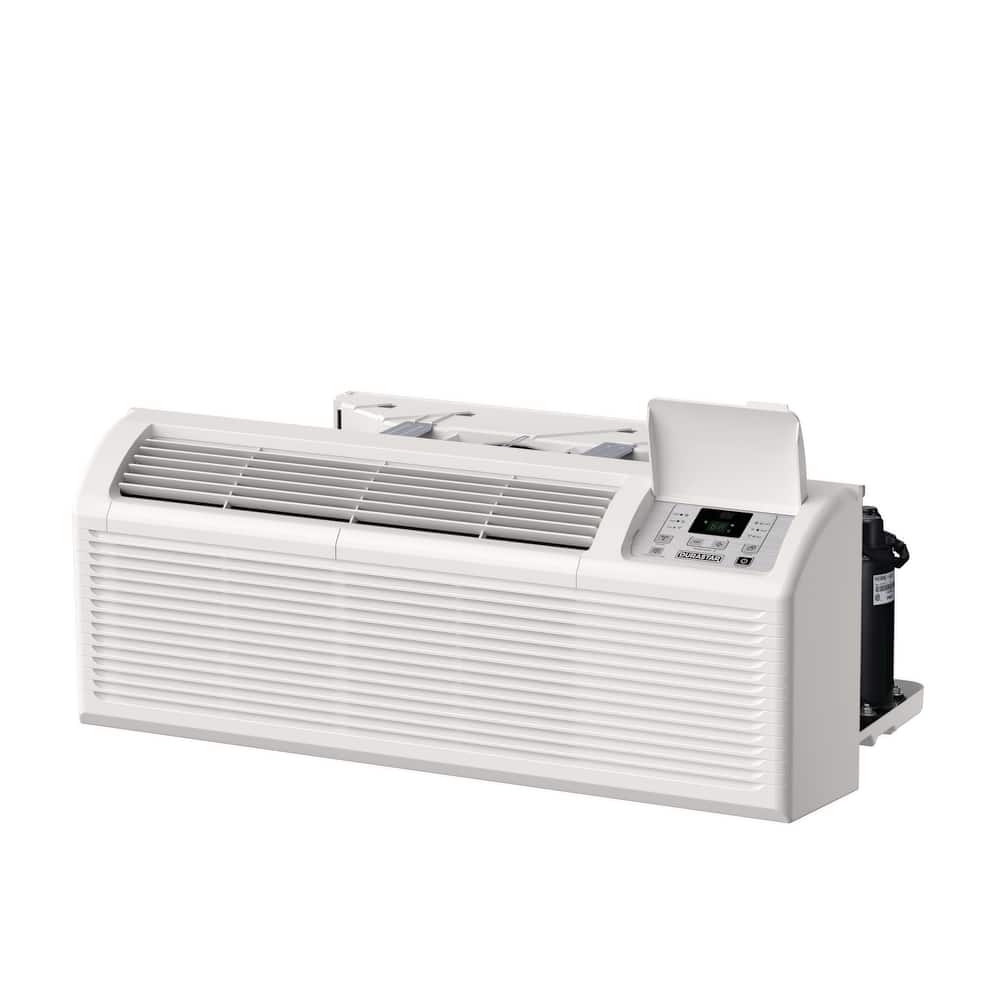

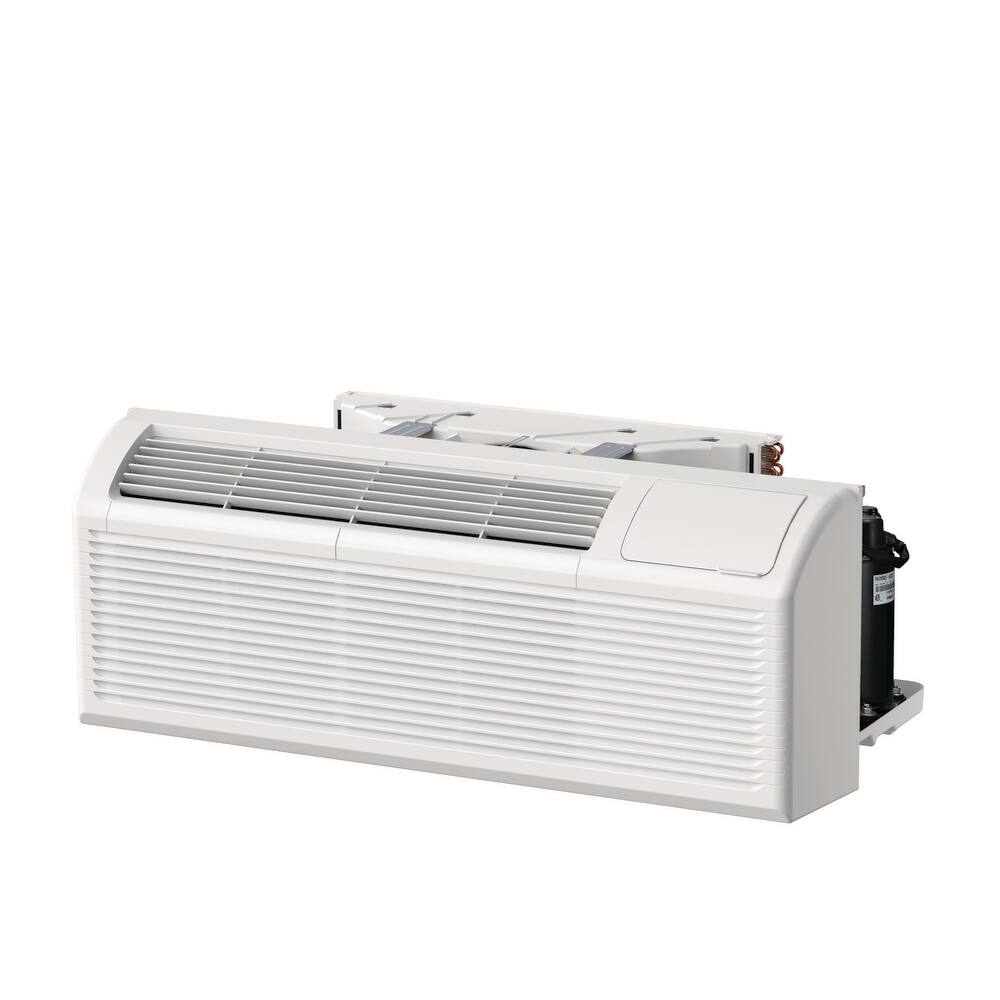

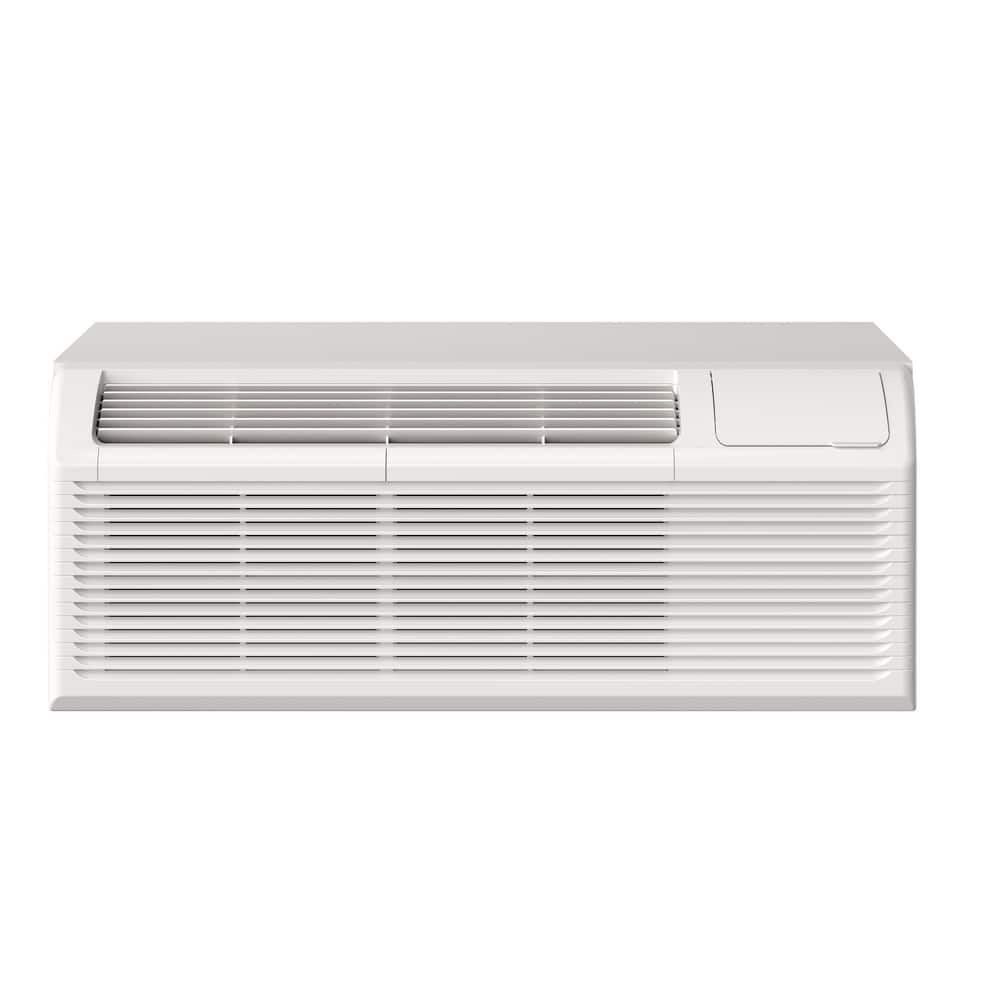

Packaged Terminal Air Conditioners - R32
Customized and efficient temperature control for individual spaces.
Packaged Terminal Air Conditioners, or PTACs, are the perfect solution for individualized comfort. Not to mention, our R32 PTACs reduce environmental impacts and are tested to perform. This new series includes an Auto fan setting and a Dry mode for added comfort control. Whether upgrading your home office, condo, or sunroom, discuss your heating and cooling options with a reputable HVAC contractor. Together, you can explore Durastar’s HVAC equipment and determine which solutions offer the cost-saving comfort you need.
Please note, that our selection of PTACs fits a standard wall sleeve, includes washable filters, and has intuitive, easy-to-access controls on the unit. If you’re looking to achieve precise temperature control for small areas, you may also consider learning more about our inventory of PTHPs and mini-split units.
Models
Packaged Terminal Air Conditioners - R32 Features
- A2L Compatible
- HVAC equipment products sold to licensed contractors only. Products sold in select areas only, please contact your local branch for availability in your area.
- Fits standard wall sleeve
- Auto Fan Mode
- Dry Mode
- Fresh Air Vent
- LCDI power cord included
- Automatic room freeze protection at 32°F in an unoccupied room
- 24V Thermostat Compatible
- 5-year limited warranty
DRPTAC07Y32351A
- A2L Compatible: Yes
- AMP: 3.1
- BTU: 7000
- BTU Cooling Rating: 7300 Btu/h
- BTU Heat Rating: 10900 Btu/h
- CFM: 346 ft3/min
- Coil Type: Coated Fin
- Cord Length: 72 in
- Decibel Rating (dB): 50.5 dB
- Dehumidification (Pts/Hr): 0.6
- Depth: 21 in
- EER: 13.1
- Energy Star Compliant: No
- Factory Std. Refrigerant Charge: 17.3 oz
- Height: 16 in
- MBH: 7
- Max CFM: 346.0 cfm
- Nominal Heater Size (kilowatts): 3.5
- Phase: Single Phase
- Plug Type: 6-20P
- Power Source: Electric
- Refrigerant: R-32
- Specifications - CEC Compliant: For Sale in CA
- Specifications - UL Listed: Yes
- Vent Air: 61 cfm
- Volts: 208/230V
- Watts: 560.0 W
- Weight: 98.1 lb
- Width: 42 in
Reviews
Frequently Asked questions
Is an air handler or furnace better?
Both Durastar’s furnaces and air handlers offer dependable options for distributing even airflow throughout your home. When selecting between the two, consider your location and climate. For areas with long warm seasons, an air handler will likely be more energy-efficient, however, we recommend discussing your options with a licensed contractor to ensure the best combinations of HVAC products for your home.
What does variable speed mean?
Variable speed air handlers operate at the lowest possible speed to achieve your desired indoor temperature. This results in increased energy efficiency. Variable speed units are also quieter than standard units.
Is a two-stage air handler more efficient than a single-stage air handler?
Yes, when paired with a two-stage outdoor unit, both units will operate on low capacity during milder days, requiring less energy; and switch to full capacity and power when needed.
What is an inverter compressor?
It is a compressor that seamlessly adjusts speeds to ensure the lowest energy output. Unlike standard compressors which may turn off and on repeatedly until the temperature is achieved, inverter compressors operate with a drive that modulates its speed, using minimal power to maintain your desired indoor temperature. As a result, these types of compressors use significantly less energy and have a longer life because they are not turned off and on to full power repeatedly.
What are the differences between variable speed, ECM, and PSC blower motors?
A variable-speed blower motor offers the most efficiency and adjusts speed to maintain consistent temperature control. It can also detect your home’s static pressure. Furthermore, if ducts are dirty or clogged it will automatically adjust to maintain constant airflow. In comparison to other types, variable-speed motors offer superior dehumidification because of their ability to operate at low RPMs. This results in a more comfortable space. ECM, or electronically commutated motors, are equipped with a regulator so you can select the most efficient settings for your home. Then, it adjusts its torque to maintain your desired indoor temperature. This is slightly different from variable speed motors in that they adjust to maintain a constant CFM (or airflow). PSC, also known as a permanent split capacitor, runs at one constant speed.

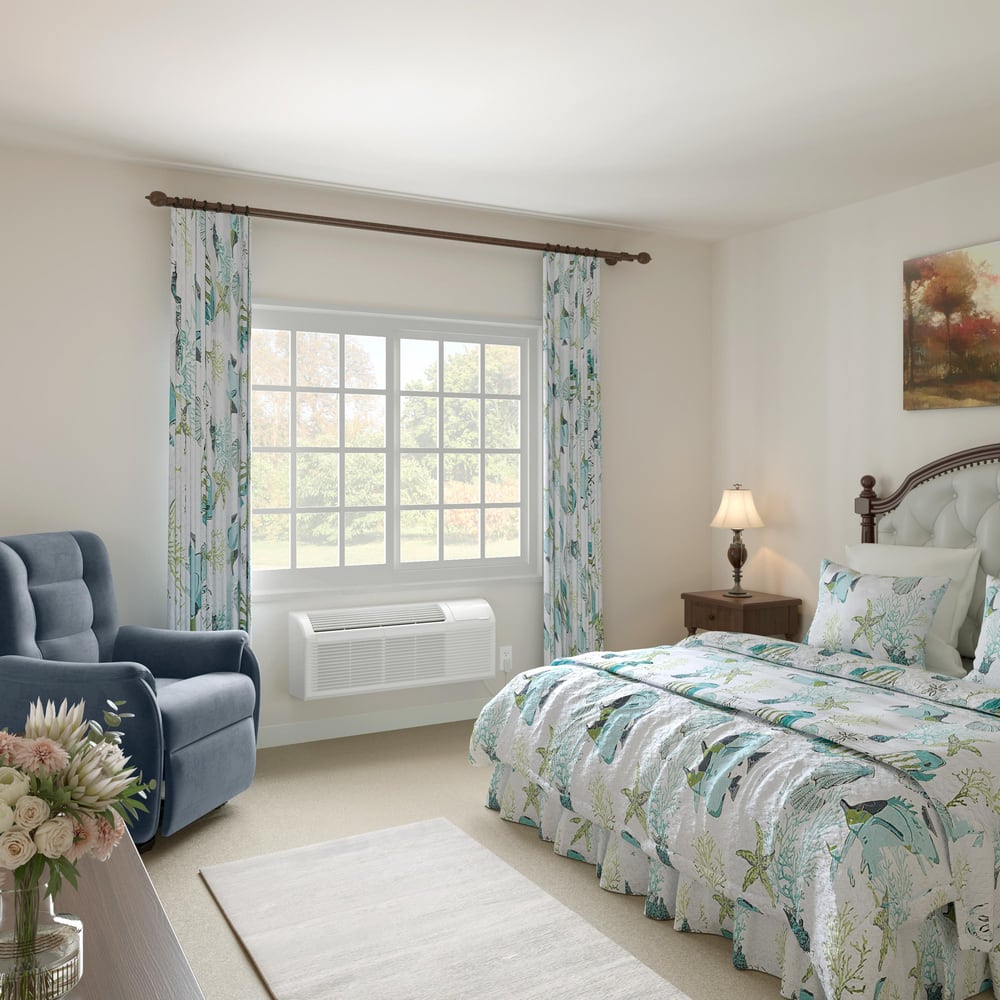

Can I use a PTAC in my home?

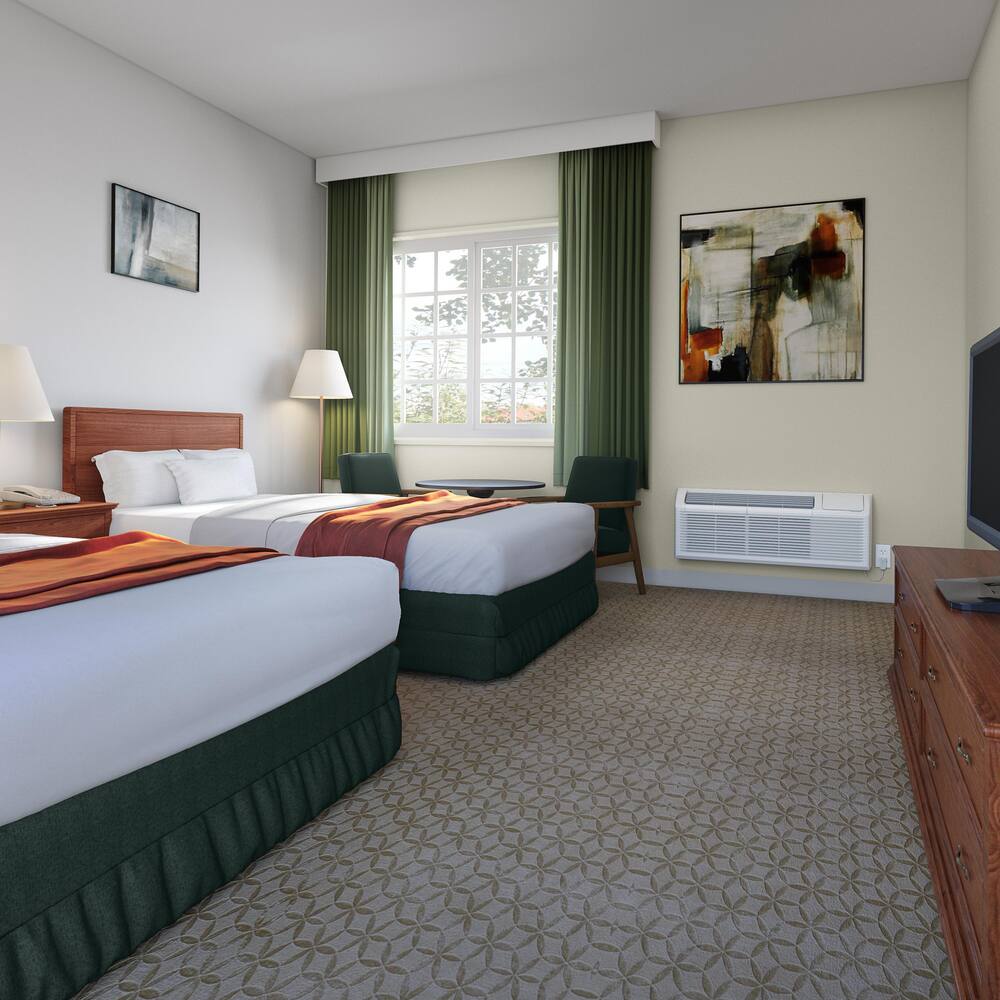

Yes! PTACs are commonly used in homes as well as commercial spaces, like hotels. They are ideal for individualized, easy to adjust temperature control.
Which is quieter, a PTAC or Mini-Split?
Unlike mini-split units which require an outdoor compressor, PTACs are one complete unit. Therefore, PTACs may generate more noise than mini-splits.
How easy is it to install or replace a PTAC or PTHP?
One of the benefits of PTACs or PTHPs is the ease of installation or replacement, however, we do recommend teaming up with a contractor to ensure the equipment is properly placed.
What is the difference between R32 and R410 refrigerant for PTACs/PHTPs?
The main difference between these two refrigerants is their GWP, also known as Global Warming Potential. R-32 has a lower GWP, is easier to recycle, and may have lower maintenance costs.
